Universal Cardan Drive Shaft SWC490BH
High-Speed Wire Rod Rolling Mill · Heavy-Duty Cardan Shaft Supplier
The SWC490BH is a precision-engineered universal cardan drive shaft designed specifically for the extreme demands of high-speed wire rod rolling mills. Delivering reliable torque transmission under continuous heavy load, it is the preferred choice for steel plants, bar and rod mills, and industrial drive system integrators across the United Kingdom and beyond.
What Makes the SWC490BH the Right Universal Cardan Drive Shaft for Wire Rod Rolling Mills?

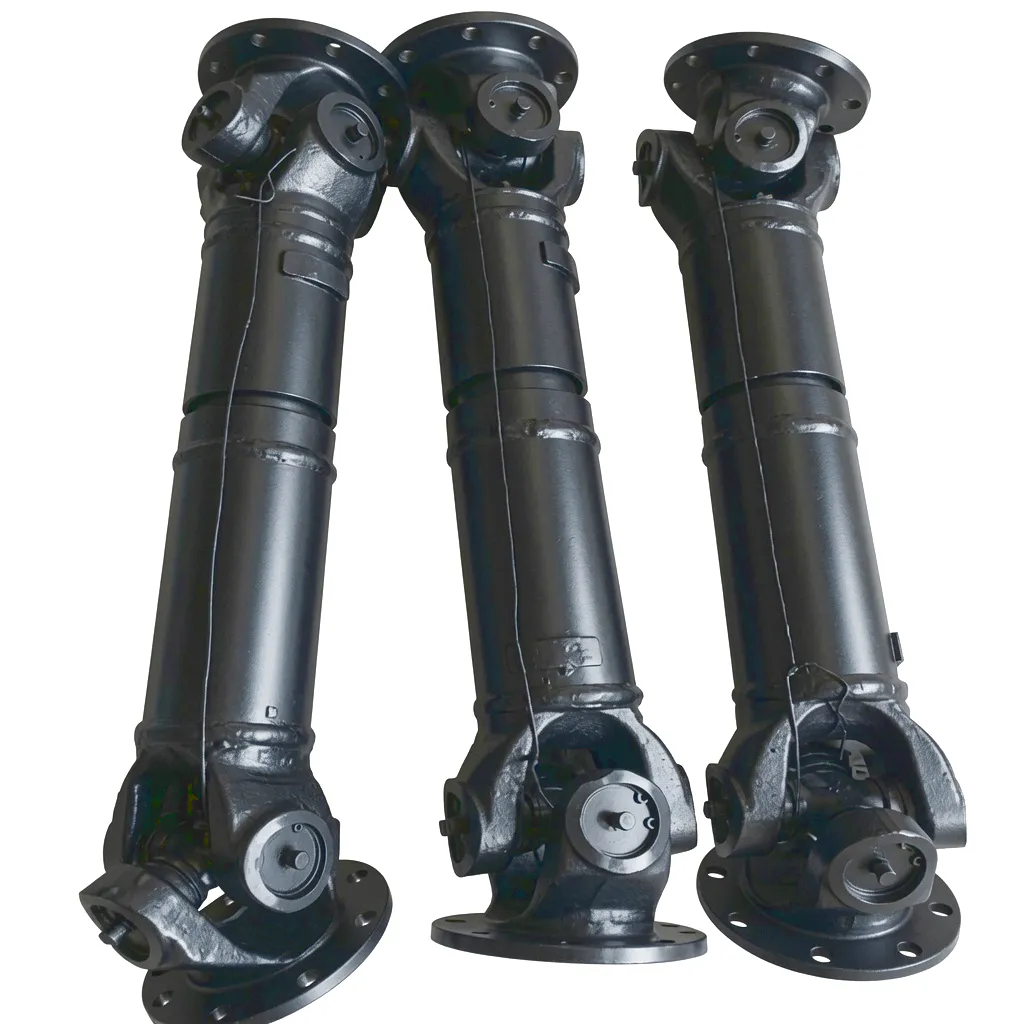

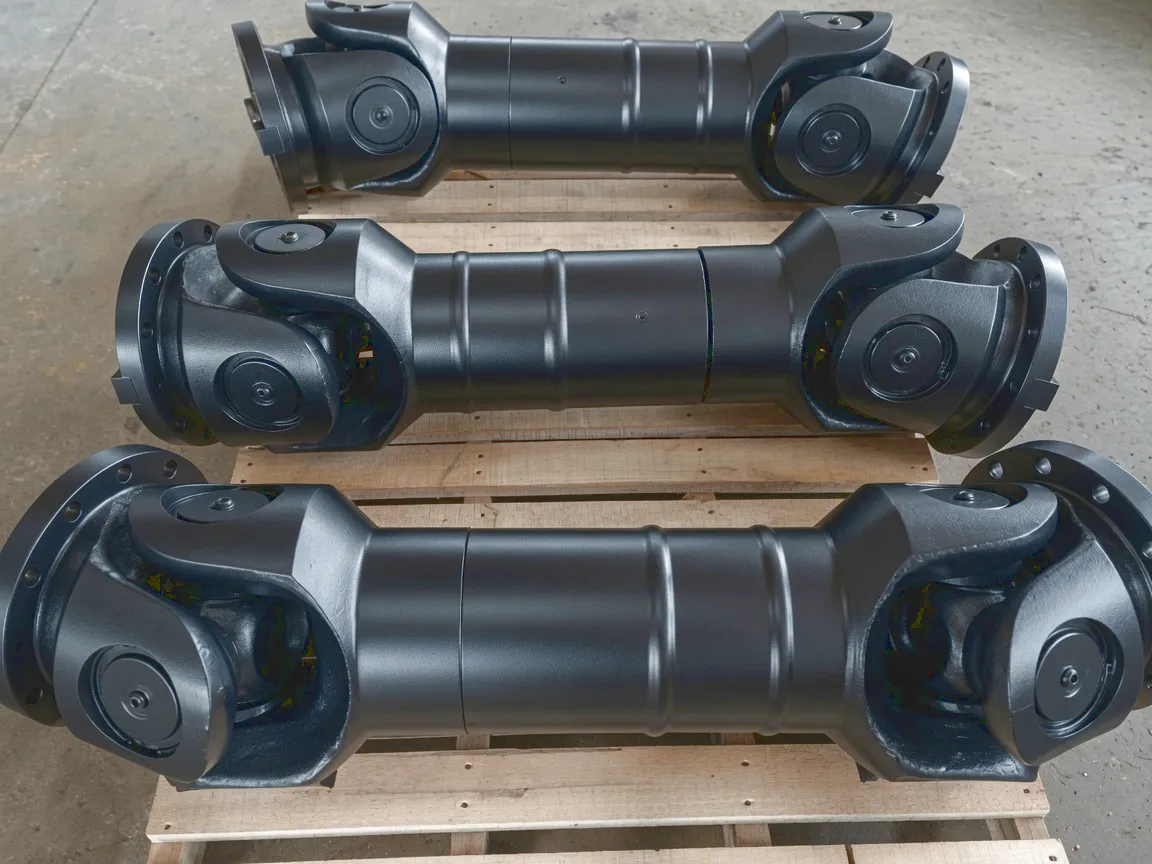

The SWC490BH universal cardan drive shaft is a purpose-built solution for the severe operating environment of high-speed wire rod rolling mills. Its flanged cross-joint construction — the BH designation indicating bolt-hole flanges at both shaft ends — is engineered to transmit torque continuously between a drive motor and the rolling mill gearbox under conditions of angular misalignment, thermal expansion, and high-cycle fatigue loading. At a nominal gyration diameter of 490 mm and a rated nominal torque of 500 KN·m, this cardan shaft sits firmly in the heavy-duty tier, well-suited to the torque demands of finishing and intermediate rolling stands. UK steel producers, specialist bar mill operators, and wire rod line OEMs consistently select the SWC490BH because it combines the angular flexibility needed to accommodate foundation movement and roll neck offset with the dimensional precision required to maintain concentric running at high rotational speeds. The maximum permissible operating angle of 15° gives mill designers meaningful latitude when laying out motor-to-gearbox drive lines, particularly in retrofit and refurbishment projects at existing UK steel facilities where available space is constrained.
Serviceability is built into the SWC490BH from the outset. The universal joint cross-and-trunnion assemblies are retained by snap rings, allowing field replacement of worn crosses during a planned maintenance window without returning the entire cardan shaft to a repair workshop. For British steelmakers running continuous casting and rolling lines where downtime cost per hour is substantial, this capability translates into a direct reduction in unplanned stoppages and a lower total cost per tonne of rod produced. The shaft’s 190 mm flex quantity (Ls) and minimum compressed length (Lmin) of 1,985 mm give engineering teams the dimensional data they need to confirm fit within the drive train layout without additional calculation.
Engineering Advantages of the SWC490BH Cardan Drive Shaft
High Power Transmission Efficiency
The SWC490BH universal cardan drive shaft is rated for a nominal torque of 500 KN·m with a fatigue torque (Tf) of 250 KN·m, ensuring that the maximum power generated by the drive motor reaches the rolling mill stands with minimal loss. This efficiency directly benefits the productivity and energy utilisation of UK wire rod lines operating around the clock.
Angular Misalignment Compensation up to 15°
Wire rod rolling mills regularly experience angular offset between the driving and driven shafts due to thermal expansion, mechanical vibration, or foundation settlement. The SWC490BH accommodates a continuous operating angle of up to 15°, compensating for these displacements smoothly and preventing stress transmission to adjacent bearings and gearbox components — a critical protection in high-speed duty.
High-Quality Alloy Steel Construction
Shaft tubes are manufactured from 42CrMo4 medium-carbon chromium-molybdenum alloy steel, quenched and tempered to achieve tensile strength of 900 MPa and above. Cross-and-trunnion assemblies use 20CrMnTi case-hardened steel with needle roller bearing cups ground to Ra 0.4 µm surface finish. This material combination resists wear, fatigue cracking, and the impact torque spikes common during cobble and jam events in rod production.
Durability & Field-Replaceable Cross Assemblies
The SWC490BH is built for long service life under heavy-duty continuous operation. Its snap-ring retained cross-and-bearing assemblies can be replaced in the field without specialist equipment, allowing UK maintenance teams to swap worn crosses during planned 4-hour shutdown windows rather than waiting for full shaft return to a workshop — a direct saving in both downtime hours and maintenance budget.
Smooth Operation & Vibration Damping
The universal joint design of the SWC490BH inherently absorbs torsional and bending vibrations generated during the rod rolling cycle. Reduced vibration transmission to the mill stand and gearbox housing improves the surface quality of finished wire rod, lessens bearing wear rates across the drive train, and contributes to a quieter, safer working environment at UK steel plant facilities.
UK-Ready Export Packaging & Fast Dispatch
Standard SWC490BH cardan drive shafts ship in 15–25 working days from order confirmation; custom flange or length configurations ship in 20–30 days. All shafts are wrapped in VCI anti-corrosion film and crated to ISPM-15 phytosanitary standard, meeting UK import timber packaging requirements without additional treatment on arrival at British ports or distribution centres.

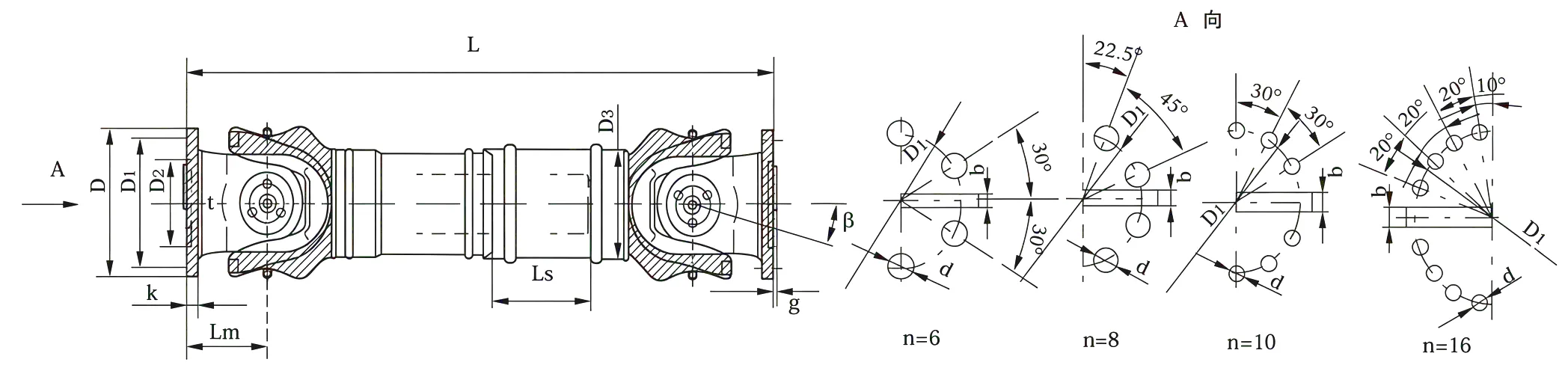

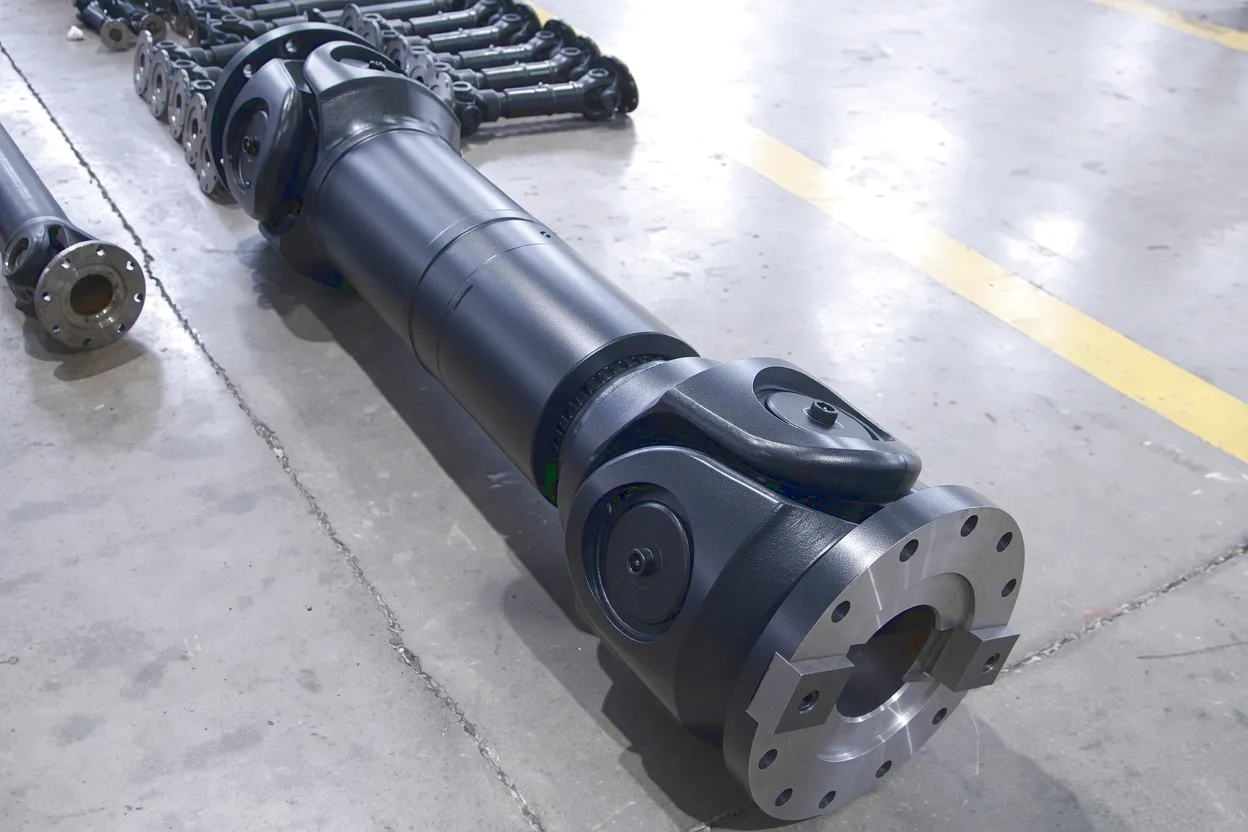

Technical Specification — SWC490BH Universal Cardan Drive Shaft
The dimension and performance data below is the complete official specification for the SWC490BH model. All values are nominal; confirm exact requirements at the time of order.
| No. | Gyration diameter D mm |
Nominal torque Tn KN·m |
Axes fold angle β (°) |
Weary torque Tf KN·m |
Flex quantity Ls mm |
Size (mm) | Rotating inertia kg·m² |
Weight (kg) | |||||||||||
| Lmin | D1 (js11) |
D2 (H7) |
D3 | Lm | n-d | k | t | b (h9) |
g | Lmin | Increase 100mm |
Lmin | Increase 100mm |
||||||
| SWC490BH | 490 | 500 | 250 | ≤15 | 190 | 1985 | 435 | 275 | 325 | 270 | 16-31 | 47 | 12 | 90 | 22.5 | 32.86 | 0.4744 | 1452 | 21.7 |
All dimensions in mm unless noted. Scroll horizontally on mobile to view full table.
Working Principle, Materials, and Application Scenarios
How the SWC490BH Cardan Drive Shaft Works

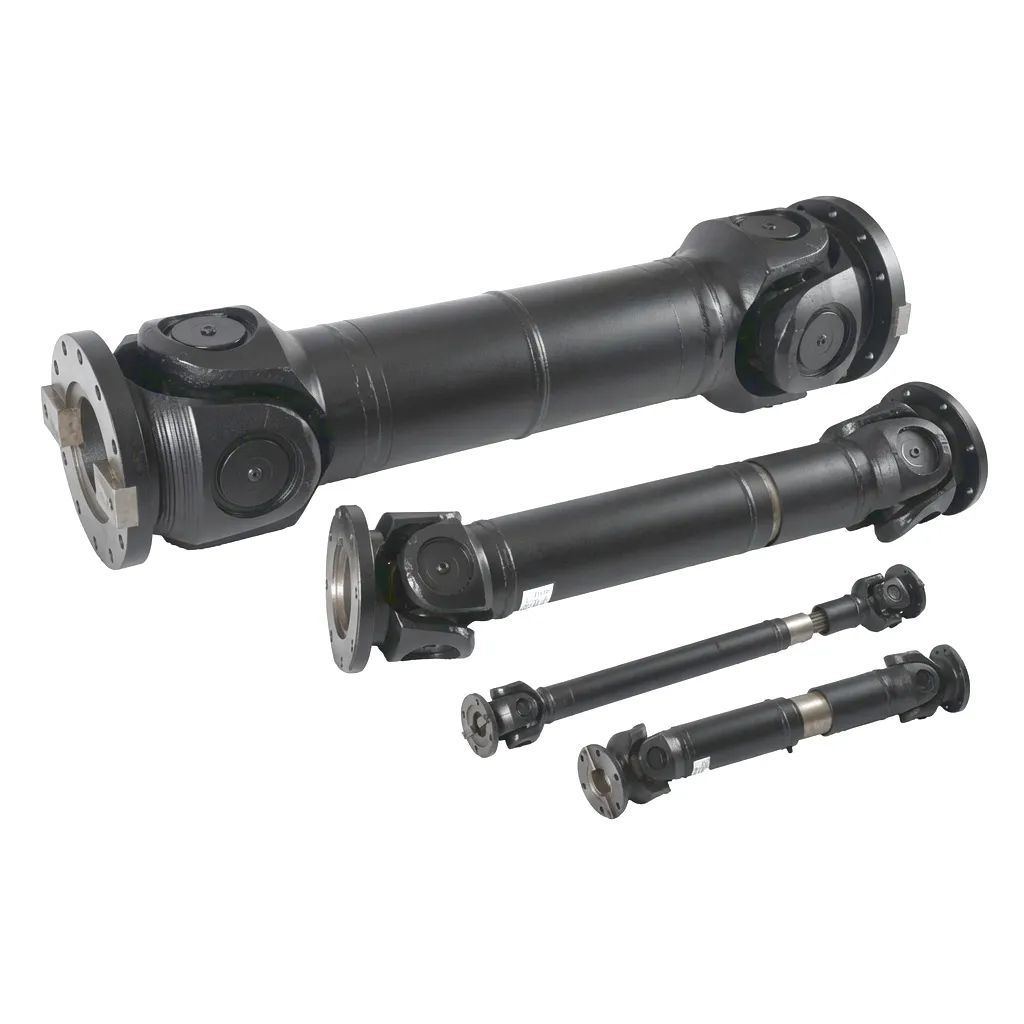

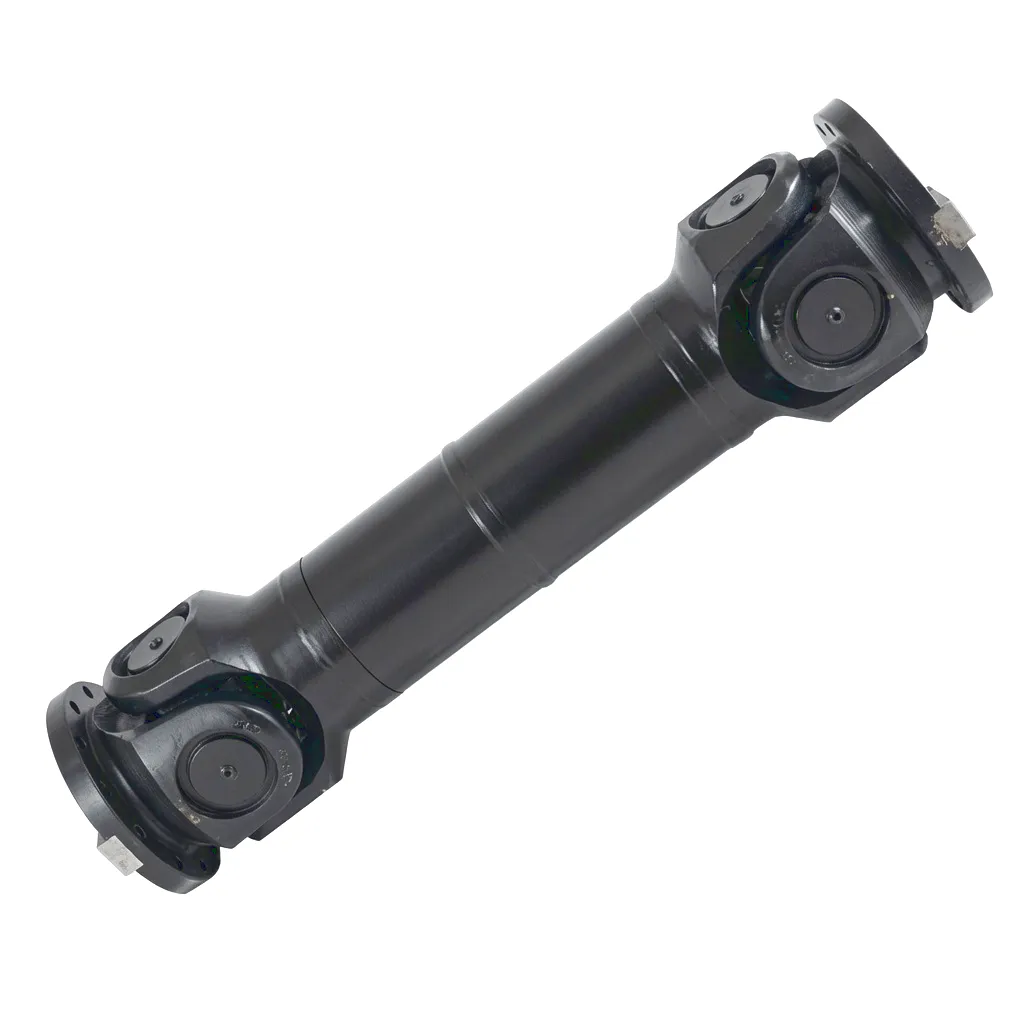

The SWC490BH universal cardan drive shaft operates on the Hooke’s Law double-joint principle: two cross-and-trunnion universal joint assemblies are connected by an intermediate tube, with one joint at each end of the shaft. Rotational power enters from the drive motor or gearbox output via the first flanged joint, passes through the tube, and exits at the second joint into the rolling mill stand gearbox. When both joint angles are equal and the yoke forks at each end are phased at 180° to one another, the velocity fluctuation introduced by the first joint is cancelled by the second, producing near-constant-velocity torque output across the operating angle range. Slip joints within the tube body accommodate axial length change during thermal expansion and load cycles, preventing end-load on the motor and gearbox bearings. All components are assembled and yoke-phased on a dedicated fixture, then dynamically balanced before dispatch to ensure smooth running at the high rotational speeds characteristic of wire rod finishing blocks.
Material Selection and Why It Matters
The shaft tube is produced from 42CrMo4 alloy steel, quenched and tempered to achieve a tensile strength of 900 MPa and above. This grade was selected for its combination of high fatigue limit under reversed bending, good toughness at low temperatures — relevant to UK outdoor or poorly heated mill environments — and its machinability, which allows the splines, bores, and flange faces to be finished to tight tolerance. Cross-and-trunnion assemblies are produced in 20CrMnTi, a case-hardening grade that provides a 58–64 HRC surface hardness on the trunnion journals while retaining a tough 35–45 HRC core to withstand the shock loading that occurs when mill cobbles jam suddenly. The needle roller bearing cups are precision ground to Ra 0.4 µm and hardness-matched to the trunnion surface to sustain an adequate elastohydrodynamic lubricant film at operating speed. NLGI #2 lithium-complex grease is specified for regreasing intervals that are practical within typical UK steel plant maintenance schedules.
Application Scenarios for UK Industrial Buyers
In the United Kingdom, the SWC490BH cardan drive shaft is deployed primarily as the motor-to-gearbox coupling on wire rod rolling mill finishing blocks, where typically 6 to 10 rolling stands run in tandem at high speed to reduce billets to finished rod diameters of 5.5 mm to 16 mm. The shaft absorbs the angularity introduced by the drive layout while transmitting the full torque of AC variable-speed drives that have replaced older DC systems on many refurbished UK mills. Beyond wire rod, this cardan shaft finds use in bar mill intermediate stands, aluminium rod breakdown mills, copper rod upcast drive systems, and in paper machine felt and wire section drives where high torque at moderate speed and continuous operation are required simultaneously. UK engineering consultants and maintenance managers sourcing replacement or upgrade cardan shafts for these duties consistently turn to the SWC490BH as a proven, well-supported solution.
Customer Success Cases
UK Steel Producer Cuts Unplanned Downtime by 38% on Wire Rod Line
Industry: Special Steel Wire Rod · Location: South Wales, United Kingdom
A South Wales special steel producer operating two 500,000 t/yr wire rod lines was experiencing repeated cross-joint failures on the No. 4 finishing stand drive shaft. Root cause analysis identified that the legacy cardan shafts had been balanced to G16 — insufficient for the higher finishing speeds introduced when the mill upgraded to AC variable-frequency drives. After switching to SWC490BH universal cardan drive shafts with G2.5 balance certification, the producer recorded a 38% reduction in unplanned line stoppages over a 12-month monitored period. The maintenance engineering manager documented that the field-replaceable cross assembly design alone saved an estimated 72 hours of corrective downtime across the year, as technicians could complete cross replacements during existing 4-hour planned shutdown windows rather than removing the shaft and dispatching it to a repair facility. Total annual maintenance cost on that stand dropped by more than £40,000.
“We’ve been running four SWC490BH shafts on the No. 3 rod mill for eighteen months without a single cross failure. Vibration readings at the gearbox housing dropped by roughly half compared to what we measured with the previous supplier’s shafts. Delivery from order to plant arrival was 21 working days, which is genuinely impressive at this shaft size.”
— Maintenance Director
Flat Product & Rod Mill, West Midlands, UK
“We had concerns about changing supplier for a safety-critical drive component, but the pre-production engineering support was thorough. The team confirmed flange PCD, shaft length, grease nipple orientation, and D2 bore tolerance against our OEM drawings before a single component was machined. The shaft fitted and ran without any modification on first assembly. That is exactly what we needed.”
— Senior Mechanical Engineer
Aluminium Rod Rolling, East Midlands, UK
“The price was competitive and the documentation pack was complete — material certificate, dynamic balance test certificate, and dimensional inspection report all arrived with the shaft. For a tier-1 automotive wire supplier, traceability on drive components is non-negotiable, and every shaft in our last two orders has been fully documented. We’ve now extended the same specification to two more mill stands.”
— Procurement Manager
Automotive Wire & Cable, Yorkshire, UK
Manufacturing Capability & Product Customisation Services
With over 20 years of dedicated experience in precision cardan shaft manufacturing, our factory covers the full range of SWC, SWP, and SWL cross shaft universal shafts from 50 mm to 800 mm nominal diameter. The SWC490BH is machined on large-bore horizontal CNC turning centres, with all flanges finished to H7 / IT6 tolerance on a CMM-verified fixture. Customisation is a core capability, not an aftermarket add-on: we routinely produce cardan shafts to customer-supplied drawings, OEM replacement drawings, or from our own engineering calculations when originals are unavailable. Non-standard flange PCD, bolt count, bore diameter, keyway, and spigot fit are all accommodated, and our engineering team performs critical speed calculations for any non-catalogue shaft length and angle combination before confirming the order. Surface protection options include standard alkyd primer, two-pack epoxy for wet or acid-wash environments, and hot-dip galvanising for severely corrosive duty. Every shaft leaves the factory with a dynamic balance certificate, material mill certificate, and dimensional inspection report — in English, ready for UK receiving inspection. OEM & ODM orders are supported with customised artwork in PDF or AI format.
Customisation Capabilities — Quick Reference
| Capability | Range / Detail | MOQ |
|---|---|---|
| Shaft Diameter | 50 mm – 800 mm nominal | 1 pc |
| Custom Flange PCD & Bolt Pattern | Any; supply drawing or DXF file | 1 pc |
| Balance Grade | G16 / G6.3 / G2.5 per ISO 1940-1 | 1 pc |
| Surface Coating | Primer / 2-pack epoxy / hot-dip galvanise | 1 pc |
| Quality Documents | Material cert, balance cert, CMM report | Standard |
| OEM / ODM | PDF or AI format artwork accepted | 1 pc |
| Warranty | 12 months under normal operating conditions | — |
Related PTO Drive Shaft Products
For agricultural, compact industrial, or lighter-duty applications, our full PTO drive shaft range covers every torque class from sub-compact tractor to heavy-duty farm machinery. Each series targets a specific duty envelope.
PTO Drive Shaft G Series
A robust general-purpose PTO drive shaft series covering a wide range of standard tractor-to-implement connections. Compact dimensions, reliable cross-joint protection, and a broad torque range make the G Series the most versatile entry in our agricultural shaft catalogue for UK farms and contracting operations.
PTO Drive Shaft S Series
The S Series is a slim-profile, high-speed PTO drive shaft designed for compact utility tractors and speciality row-crop implements. Lightweight construction and smooth-running universal joints reduce bearing drag and extend service intervals on equipment requiring frequent attachment changes across UK smallholdings and market gardens.
PTO Drive Shaft L Series
Engineered for high-torque implements including large round balers, forage harvesters, and heavy cultivation machinery, the L Series features reinforced yokes and wide-angle constant-velocity joints as standard — handling the severe angular fluctuations encountered on undulating British farmland with heavy trailed equipment.
PTO Drive Shaft T Series
The T Series heavy-duty telescoping PTO drive shaft is built for large agricultural and light industrial applications requiring double-tube telescoping flexibility and robust overload protection. Full CE compliance and optional friction clutch or shear bolt torque limiters make it the specification of choice for demanding UK estate machinery and large-scale arable operations.
Frequently Asked Questions
Common questions from UK procurement managers, mechanical engineers, and mill maintenance teams considering the SWC490BH universal cardan drive shaft.
What is the price of an SWC490BH universal cardan drive shaft for a UK wire rod rolling mill, and how do I get an accurate quote?
The cost of the SWC490BH cardan drive shaft depends on the shaft length (Lmin baseline 1,985 mm plus any extension), flange configuration, balance grade, surface coating, and order quantity. Because rolling mill drive shafts are semi-custom components, we do not list fixed prices — every enquiry receives a detailed cost breakdown. To receive a quotation for your UK wire rod mill or bar mill, email your shaft drawing, required length, and flange PCD details to [email protected]. We typically respond with a firm price and lead time within one working day.
Which universal cardan drive shaft should I choose for a high-speed wire rod mill finishing block running at elevated RPM in the UK?
For a finishing block drive where the nominal shaft body diameter is 490 mm and operating torque approaches or exceeds 500 KN·m, the SWC490BH is the correct model. Its rated nominal torque (Tn) of 500 KN·m and maximum continuous operating angle of 15° are engineered specifically for the finishing end of a continuous wire rod mill. For roughing or intermediate stand duty with higher torque but lower speed requirements, a larger SWC series model may be appropriate. We recommend sending your stand layout drawing for a confirmed specification recommendation before ordering.
How long does delivery take when ordering a custom SWC490BH cardan shaft to a steel plant in the United Kingdom?
Standard SWC490BH cardan shafts ship within 20–30 working days from confirmed order, depending on final configuration and current production loading. Custom configurations with non-catalogue flange geometry or premium G2.5 balance can extend production to 30–35 working days. Sea freight transit to UK ports is typically 18–28 days; air freight 4–6 days. For mills with long replacement lead times, we recommend holding one spare SWC490BH on site at all times to cover emergency situations without production loss.
What material certification and quality documentation is included with the SWC490BH cardan shaft when supplied to UK industrial buyers?
Each SWC490BH universal cardan drive shaft is supplied with a material mill certificate for the shaft tube covering chemical composition and mechanical test results, a dynamic balance test certificate to ISO 1940-1, and a dimensional inspection report signed by our QC department. Hardness test records for cross-and-trunnion sets and cross-section inspection photos are available on request. CE documentation can be arranged through our technical team for UK buyers who require it for their own compliance records. All documents are issued in English and accompany the shipping documents.
Where can I find a reliable UK supplier for OEM rolling mill cardan shaft replacement at a competitive cost per shaft?
When sourcing a replacement cardan shaft for a UK rolling mill, prioritise suppliers who can manufacture to your existing flange drawing rather than requiring you to adapt your mill to a catalogue product. Key qualifying criteria are: confirmed experience with SWC series mill-duty shafts, dynamic balance capability to G6.3 as a minimum, full material and balance certification, and accessible after-sales supply of replacement cross-and-trunnion kits. At pto-drive-shafts.com we supply the SWC490BH as a direct OEM replacement with full documentation and 12-month warranty, at prices that are competitive with European supply alternatives. Sending your OEM part drawing by email is the fastest path to a confirmed quotation.
When should I schedule a cardan shaft inspection on a UK wire rod mill, and what are the early warning signs of imminent cross failure?
Universal cardan drive shafts on UK wire rod mills should be inspected at every planned shutdown of 8 hours or longer, focusing on cross-bearing cup wear, needle roller surface condition, yoke bolt torque, and grease colour and consistency. Early warning signs include gearbox housing vibration readings rising above 4 mm/s RMS at the cross excitation frequency, audible clicking or growling during run-up or coast-down, and grease purging from deteriorated seal lips. On continuous rod lines where a cross joint failure causes a mill cobble and potential secondary gearbox damage, planned cross replacement at 6–12 month intervals in hard service is consistently more economical than running to failure.
Ready to Source the SWC490BH for Your UK Rolling Mill?
Send us your shaft drawing, OEM part number, or key dimensions — nominal diameter, shaft length, flange PCD, and operating angle. Our engineers confirm compatibility and provide a competitive price and lead time within one working day.
