What Makes the PTO Drive Shaft T Series Different?
The PTO Drive Shaft T Series is a heavy-duty power transmission component designed to connect a tractor or power unit to agricultural and industrial implements reliably under variable field conditions. Unlike commodity-grade shafts flooding the market, this series is engineered with precision-balanced yokes, high-grade alloy steel tubes, and CE-certified safety guards — making it a trusted choice for farm machinery operators and fleet managers across England, Scotland, Wales, and Northern Ireland. Whether you run a mixed arable operation in East Anglia or manage a large estate in Yorkshire, the T Series delivers consistent, low-maintenance torque transfer across an extended service life.
Every PTO drive shaft in the T Series undergoes rigorous dimensional inspection and dynamic balancing before leaving the production facility. The telescopic tube design allows for flexible length adjustment to accommodate different tractor-implement coupling distances, while the integrated shear bolt or friction clutch options protect both the tractor gearbox and the connected implement from sudden overload events — a feature particularly valued in UK contracting and hire-fleet applications where equipment changes hands across multiple operators daily.
Core Advantages of the T Series PTO Drive Shaft
High-Torque Transmission
Engineered to handle demanding torque loads on tractors from 50 hp up to 200+ hp, the T Series maintains rotational accuracy even under peak seasonal workloads like baling or heavy cultivation.
Telescopic Length Adjustment
The sliding inner and outer tubes allow quick length adjustment to fit a wide range of tractor-implement distances, eliminating costly custom fabrication when switching between different attached equipment.
CE-Certified Safety Guard
All T Series units ship with a fully enclosed plastic safety guard that complies with UK PUWER regulations and CE marking requirements — a non-negotiable standard for contracting businesses and farm inspections across Great Britain.
Overload Protection Options
Available with shear bolt clutch or friction torque limiter configurations, the T Series protects expensive gearboxes and implement drivelines against sudden shock loads — reducing costly downtime during peak harvesting periods.
Extended Service Life
Precision-machined universal joints with grease nipples allow routine lubrication maintenance, significantly extending component life versus sealed units. The alloy steel construction resists corrosion in wet British field conditions.
Wide Compatibility
Standard 6-spline and 21-spline yoke profiles fit the majority of European tractor brands including John Deere, New Holland, Claas, and Fendt — simplifying procurement for UK agricultural machinery dealers and fleet operators.
How the PTO Drive Shaft T Series Works
The T Series operates on the universal joint (Cardan joint) principle, which transmits rotational torque between two shafts that may be offset from each other by an angular deflection. Power flows from the tractor’s output stub (540 or 1000 RPM) through the front yoke, across the telescopic tube assembly, through the rear yoke, and into the implement gearbox or pump input shaft. The double-joint (constant velocity) option minimises vibration and speed variation when operating at larger angles — important for mowers and mulchers where smooth power delivery directly affects cut quality and blade longevity.
🔧 Materials & Construction
The outer and inner tubes are cold-drawn from 45# carbon steel or 40Cr alloy steel, then heat-treated to achieve a precise balance of surface hardness and core toughness. Universal joint crosses are forged, ground, and case-hardened. Yokes are precision cast or forged, with machined spline bores and cross-hole positions held to tight tolerances. The outer safety guard is injection-moulded from UV-stabilised high-density polyethylene, resistant to the chemicals and weathering typical of British farm environments.
🌿 Agricultural Application Scenarios
In British farming contexts, PTO drive shafts in the T Series are commonly fitted to rotary mowers, flail mulchers, balers, hedge cutters, slurry tankers, and grain augers. In arable districts such as Lincolnshire and Cambridgeshire, contractors rely on them during intense harvest seasons. Livestock farms in Cumbria and Herefordshire use them daily on handling equipment and feeders. The T Series is also specified for light construction and groundskeeping equipment where 540 RPM PTO outputs are standard.
Technical Specifications — PTO Drive Shaft T Series

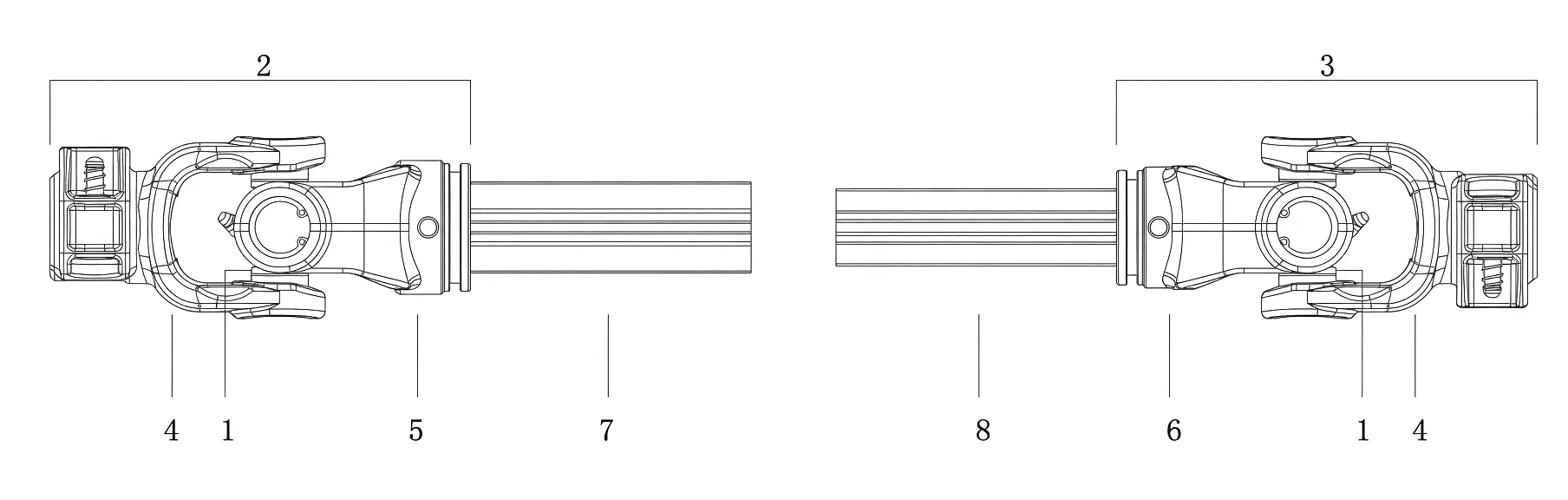

Design Drawing

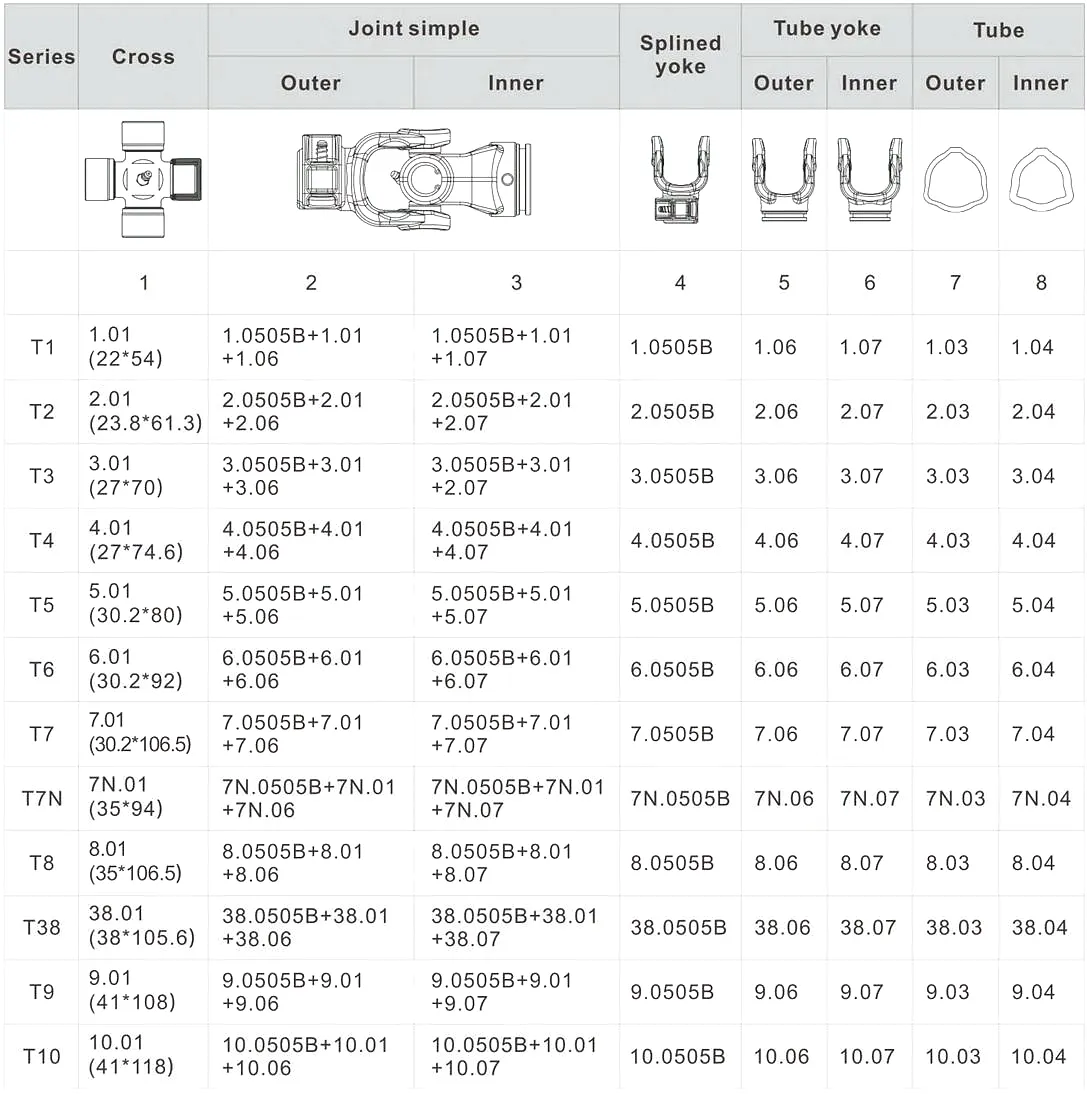

Parameter Chart 1

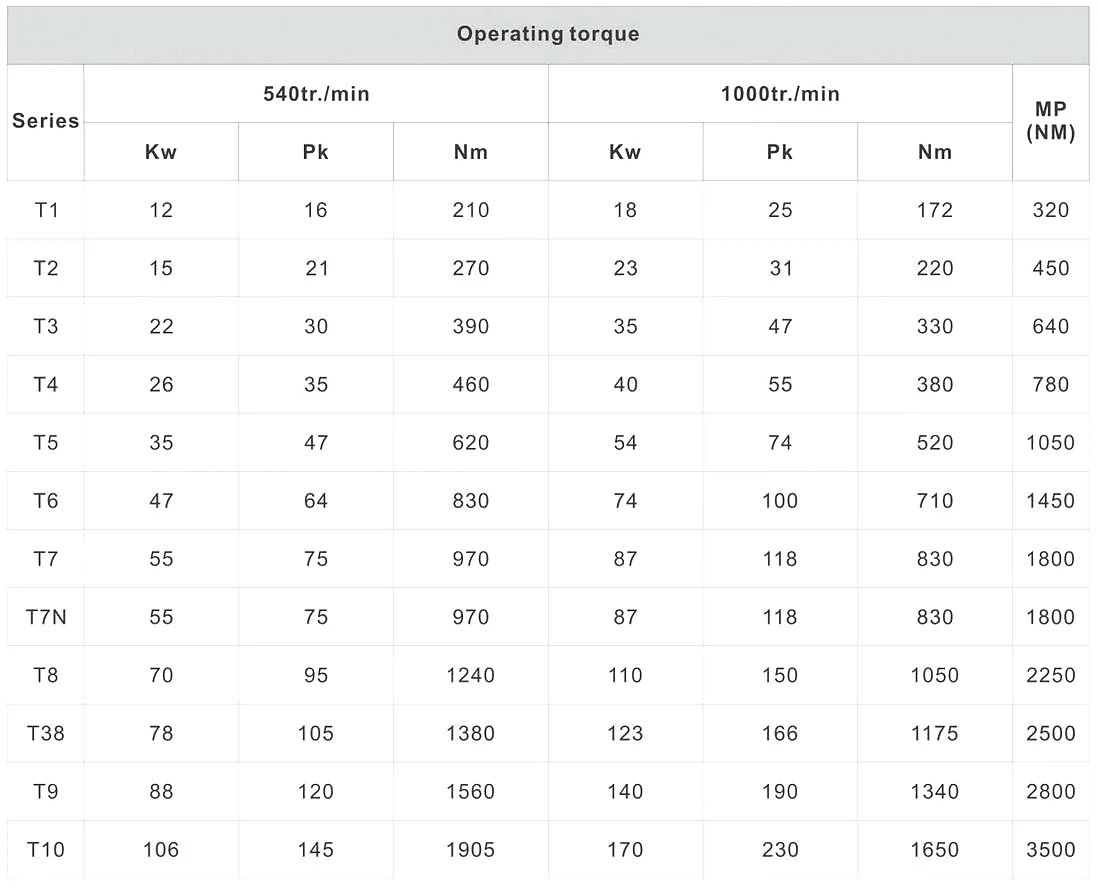

Parameter Chart 2
Quick Reference — Key Parameters
| Parameter | Detail |
|---|---|
| Series Name | PTO Drive Shaft T Series |
| PTO Speed | 540 RPM / 1000 RPM |
| Tube Material | 45# Carbon Steel / 40Cr Alloy Steel |
| Yoke Profile | 6-Spline / 21-Spline (custom available) |
| Clutch Type | Shear Bolt / Friction Torque Limiter / Ratchet |
| Operating Angle | Up to 25° (double-joint CV option) |
| Safety Guard | CE-Certified HDPE Plastic Guard (full enclosure) |
| Surface Treatment | Yellow Zinc Plating / Powder Coat (custom) |
| Lubrication | Grease Nipple on Each Cross Assembly |
| Certification | CE, ISO 9001 |
| Custom OEM Available | Yes — length, yoke, clutch, branding |
Manufacturing Capability & Custom PTO Shaft Solutions
From single-unit prototypes to large-volume OEM supply, Ever Power manufactures every T Series shaft in-house across our ISO-certified facility.
Custom Length
Specify your required collapsed and extended length. We cut, machine, and balance to your exact drawing or dimension sheet — ideal for non-standard implement linkages.
Yoke & Spline Variants
We manufacture quick-release, bolt-on, weld-on, and pin-type yoke configurations. Spline profiles are machined to DIN, ISO, or customer-supplied standards — essential for UK machinery dealers sourcing replacement parts.
OEM Branding
Private-label packaging, custom colour guards, and laser-marked serial numbers are available for UK importers, distributors, and equipment OEMs who require products shipped under their own brand identity.
Clutch Configuration
Your choice of shear bolt, friction disc, ratchet, or cam clutch fitted at the front end, rear end, or both. Torque setting can be specified to match your implement’s maximum driveline rating — fully documented for CE compliance submissions.
Customer Success: Real-World Performance
Midlands Contracting Firm Reduces Driveline Downtime by 60%
A family-run agricultural contracting business based in Warwickshire was experiencing recurring PTO shaft failures on their fleet of five flail mowers during silage cutting season. Their previous supplier’s shafts — sourced from a general-purpose distributor — were failing at the universal joint crosses after an average of 280 operating hours, well below the expected 600-hour seasonal target. The repeated repairs and parts lead times were costing the business an estimated £4,200 in lost contract revenue per season.
After contacting Ever Power and specifying their exact implement requirements, the team was supplied with T Series PTO drive shafts configured with friction torque limiters set to 850 Nm — matched precisely to the mower driveline rating. The cross assemblies were upgraded to heavy-duty bearings with a higher dynamic load rating. Custom length and yoke profiles were manufactured to their drawing within 15 working days.
Result: After two full silage seasons (approximately 1,100 operating hours per shaft), zero cross-assembly failures were recorded. The business has since expanded its Ever Power supply agreement to cover replacement shafts for its baler and hedge-cutter fleet — representing an ongoing annual procurement value of over £6,500.
We run a mixed fleet of ten tractors for hire across Shropshire and the Welsh Borders. The T Series shafts have been running on our square balers for three seasons without a single cross failure. Lead time from order to delivery was faster than any UK-based supplier we’d tried, and the price per unit was considerably lower for the same specification.
James H.
Fleet Manager — Agricultural Hire, Shropshire, UK ⭐⭐⭐⭐⭐
I distribute agricultural parts across East Anglia and needed a reliable PTO shaft supplier who could handle bespoke orders. Ever Power supplied custom-length T Series units with quick-release yokes for my customers’ Claas combine headers — exactly to spec. The CE documentation was comprehensive and passed AHDB supplier audit with no queries raised.
Mark T.
Agricultural Parts Distributor, Norfolk, UK ⭐⭐⭐⭐⭐
Our estate in Herefordshire has been using the T Series on a Hymac slurry tanker and a McConnel hedge trimmer for two years. What impressed us most was the friction clutch — it saved the tanker PTO gearbox when we hit a submerged stump last autumn. The shaft sacrificed itself as intended and the gearbox was completely undamaged. Excellent engineering at a very fair price point.
Richard M.
Estate Farm Manager, Herefordshire, UK ⭐⭐⭐⭐⭐
Supplying PTO Drive Shafts Across the United Kingdom
UK agricultural businesses, machinery dealers, and contracting firms have distinct procurement needs shaped by British farming conditions, PUWER health and safety legislation, and the seasonal pressure of harvest windows. The PTO Drive Shaft T Series was developed with these realities in mind — every shaft ships with CE declaration of conformity documentation, making it straightforward to incorporate into health and safety management systems required by HSWA-regulated farm operations in England, Scotland, Wales, and Northern Ireland.
🏭 Export Packaging
Sea-freight and air-freight export cartons with moisture-barrier wrapping. Direct delivery to UK ports including Felixstowe, Southampton, and Bristol available.
📋 CE Documentation
Full CE declaration of conformity, test certificates, and quality inspection records available for all T Series shipments — essential for UK importers post-UKCA transition compliance.
📅 Seasonal Stock Planning
We work with UK distributors to plan pre-season stock of the most common T Series configurations, ensuring parts are available before planting and harvest windows tighten lead times.
📞 Technical Support
Direct access to our application engineering team for shaft selection, torque rating verification, and installation guidance — provided in English by engineers familiar with UK agricultural standards.
