How Does a Power Take-Off (PTO) System Work?

The Working Principle: How a PTO Shaft Transmits Power

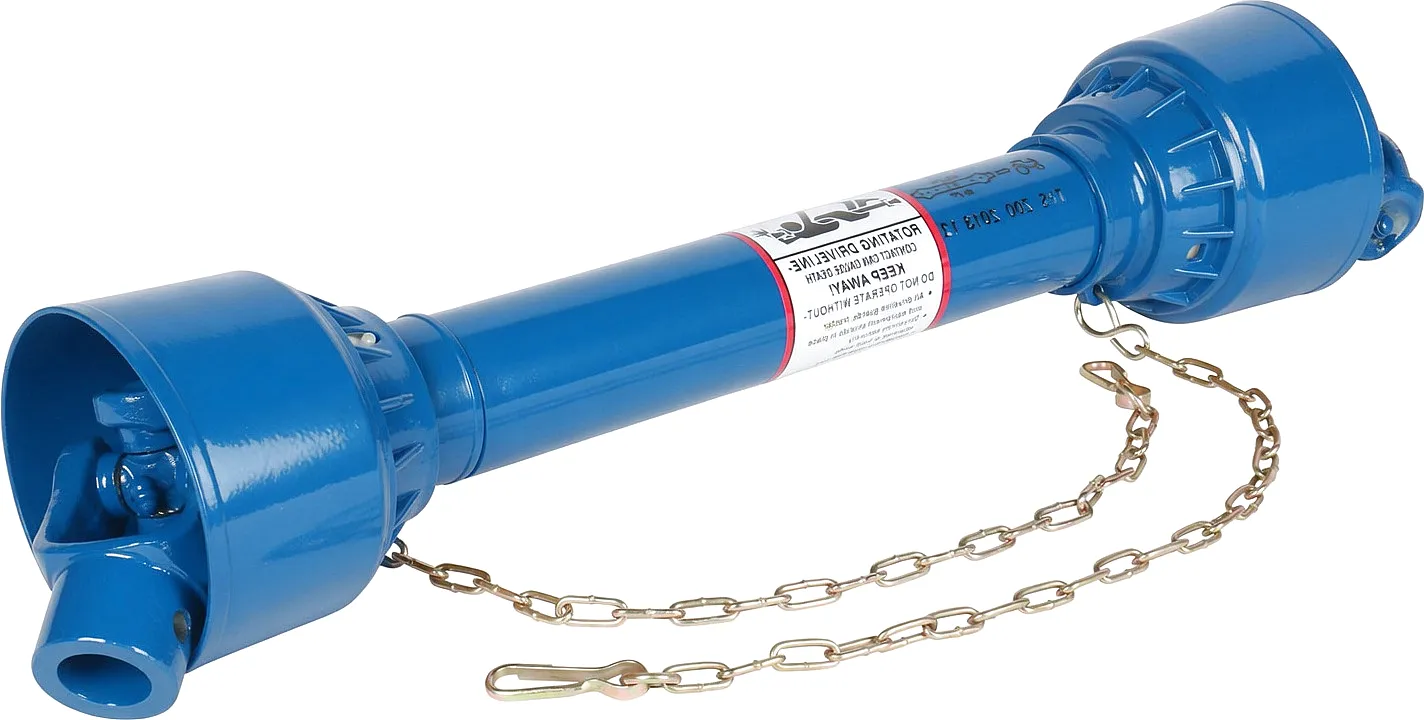

The operating principle of a PTO drive shaft is rooted in classical mechanical engineering: rotational energy produced by a prime mover — most commonly a tractor engine, an industrial electric motor, or a hydraulic drive unit — is captured at a dedicated output stub shaft and conveyed along a telescoping universal-joint assembly to a driven machine. The stub shaft is splined, meaning it has a series of parallel ridges machined along its circumference that interlock with a matching female spline in the PTO yoke. This interlocking geometry transfers torque without slippage, maintaining a firm rotational coupling even when under substantial load.

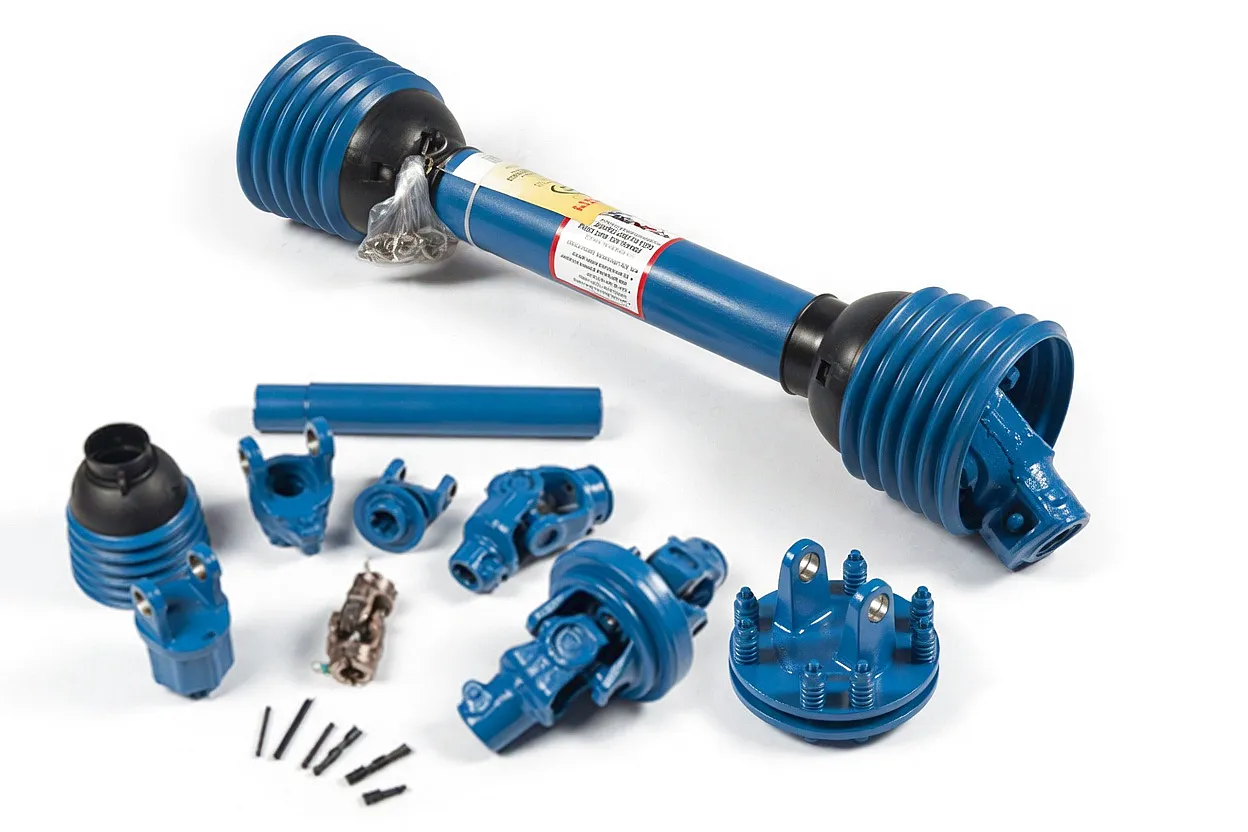

At the heart of every PTO shaft assembly lies the universal joint — commonly called a U-joint or Cardan joint. A U-joint consists of two yokes joined by a cross-shaped bearing block (known as the journal cross or spider). This arrangement allows the shaft to transmit rotational motion across an angle, which is critical because the prime mover and the driven implement are almost never in perfect linear alignment in real-world operation. Agricultural implements, for instance, must be able to pivot and articulate relative to the tractor as they follow uneven terrain. A quality U-joint assembly allows angular misalignment of up to 25 degrees or more while continuing to transmit full torque — a capability that makes the PTO shaft uniquely suited to dynamic, moving machinery configurations.

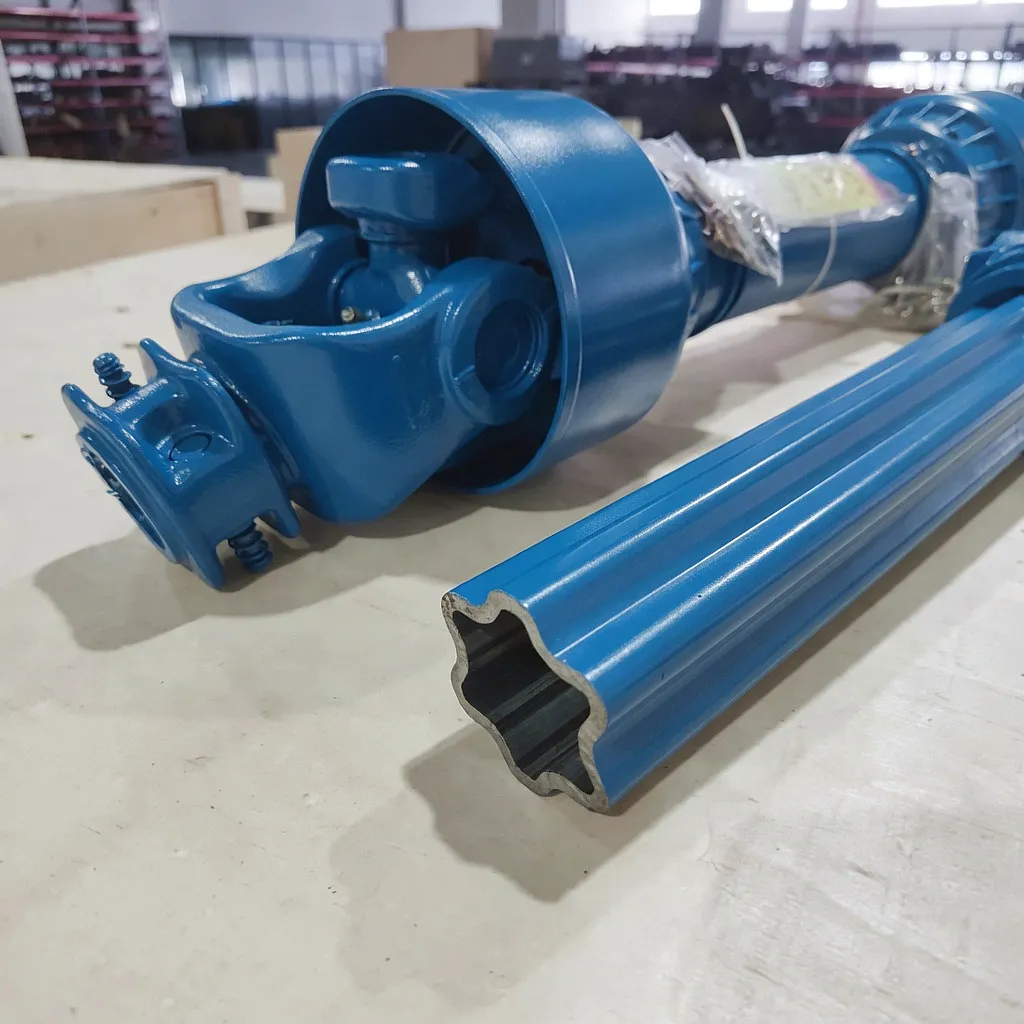

The telescoping inner and outer tubes that house the shaft serve a dual purpose: they allow the overall shaft length to vary as the distance between the tractor and implement changes during field operation, and they protect the rotating assembly from external debris and contamination. The shaft rotates inside a non-rotating guard tube for safety. Most modern PTO drive shafts also incorporate a friction clutch, a shear bolt mechanism, or an overrunning (freewheel) clutch at one or both ends. These torque-limiting devices protect the entire drivetrain when sudden shock loads — caused by striking a rock, stump, or unexpected obstruction — would otherwise transmit destructive impulses back through the gearbox or engine.

Core Materials: What Goes Into a High-Performance PTO Shaft

Material selection is the single most consequential decision in PTO shaft engineering. Every component in the assembly is exposed to some combination of high rotational speed, torsional stress, bending moments, and environmental attack — all simultaneously. The main tube sections of agricultural PTO shafts are predominantly manufactured from seamless carbon steel tube, typically conforming to grades such as E355 or S355 under European standards. These steels offer yield strength in the range of 355 MPa, providing the toughness needed to absorb shock loading without permanent deformation. For higher-performance industrial PTO shafts where mass is also a constraint, chromoly alloy steel (such as 42CrMo4) is widely specified because it delivers superior tensile strength — often exceeding 900 MPa — at a given wall thickness.

The universal joint crosses and bearing cups require exceptional wear resistance in addition to high strength. Case-hardened alloy steel with surface hardness values between 58 and 62 HRC is the standard specification for these components. The hardening process — typically carburising followed by oil quenching and low-temperature tempering — produces a hard wear-resistant surface while preserving a tough, ductile core that resists fracture. Needle roller bearings are pressed into the bearing cups to reduce friction at the joint, and these bearings are greased through a nipple during scheduled maintenance. In heavy-duty applications such as forestry mulching machines or industrial mixing equipment in Sheffield’s steel processing sector, double Cardan (constant velocity) joints may be used to eliminate the velocity fluctuation inherent in single U-joint assemblies.

The protective outer guard tubes are increasingly manufactured from high-density polyethylene (HDPE) or polypropylene, materials chosen for their combination of impact resistance, low friction against the rotating inner shaft, and immunity to the agricultural chemicals and fertilisers commonly encountered in field environments. Splines are typically cold-formed for dimensional accuracy and induction-hardened for wear life. Zinc-phosphate coating followed by epoxy or polyurethane paint systems provides corrosion protection across the full assembly — a particularly important consideration given the wet and variable climate conditions prevalent across the UK, from the rain-exposed farmlands of Wales to the coastal industrial zones of the Northeast England coastline.

Product Advantages: Why Modern PTO Shafts Outperform Legacy Designs

Modern engineered PTO drive shafts represent a substantial generational leap beyond the simple coupling devices used in mid-twentieth century agricultural machinery. Today’s designs combine precision metallurgy, advanced surface engineering, and intelligent protective systems to deliver performance characteristics that were simply not achievable even twenty years ago. The advantages extend across several dimensions — mechanical, safety, economic, and environmental — and each one has concrete, measurable consequences for the operators who depend on this equipment daily.

Technical & Performance Specification Table

Industrial Application Scenarios Across the UK and Beyond

The diversity of applications for PTO drive shafts across the United Kingdom reflects both the breadth of British industry and the fundamental versatility of the technology itself. Agriculture remains the largest single application segment, and it is impossible to discuss PTO shafts in any meaningful way without acknowledging the thousands of farms spread across East Anglia, Yorkshire, Lincolnshire, and the Scottish lowlands that depend on these shafts every single day. From compact mowers and rotary rakes on smaller family holdings to high-throughput forage harvesters and large grain auger systems on commercial arable estates, the PTO shaft is the critical mechanical link that makes each implement function.

Beyond agriculture, the construction sector represents a rapidly growing market for PTO-driven equipment in the UK. Ground investigation rigs, concrete mixer drums mounted on compact carriers, auger boring machines, and hydraulic pump drives on specialist site vehicles all use PTO shafts as part of their power transmission architecture. In the heavy manufacturing belt running from Birmingham through Coventry and Leicester, PTO-driven test rigs, pump drives on processing plant, and material handling conveyors are common fixtures on the factory floor. Industrial applications also extend to marine environments — vessels operating out of ports in Aberdeen and Hull use PTO drives to power deck winches, cargo pumps, and fire suppression systems from the main propulsion engine.

Ever Power: Precision Manufacturing & Custom PTO Solutions

Built to Your Specification. Delivered to Your Site.

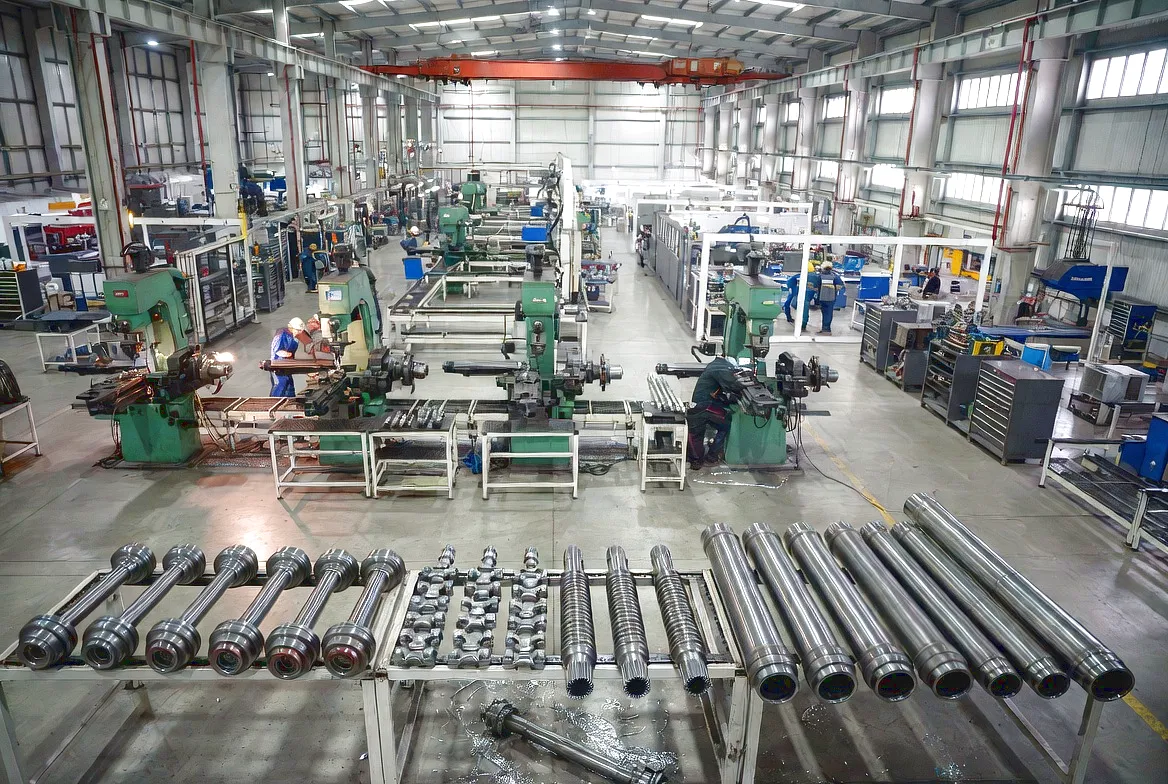

Ever Power operates one of the most technically advanced PTO shaft manufacturing facilities in the power transmission sector. With a production floor equipped with multi-axis CNC turning centres, precision spline rolling machines, induction hardening lines, and a fully automated dynamic balancing cell, the factory is configured to produce both high-volume standard series shafts and complex one-off custom assemblies with equal precision. Every batch leaving the facility undergoes dimensional inspection using coordinate measuring machines (CMMs) and torque-rated load testing on an in-house test bench, ensuring that each PTO shaft shipped to our customers in the UK and across Europe meets or exceeds the technical specification agreed at the quotation stage.
