Metallurgical Main Drive Transmission Systems

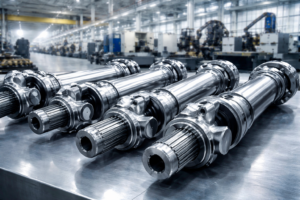

SWC-BH Series: Heavy Duty Mill Applications

For applications requiring torque transmission above 100 kNm with misalignment angles up to 15 degrees, the SWC-BH series utilizes a compact bearing design to maximize the trunnion diameter within a limited rotation envelope. Below are the engineering parameters for our core metallurgy line.

Technical Data Matrix

Note: Custom lengths and telescoping strokes are engineered per specific mill layout. Material certificates (3.1B) provided with every shipment.

Regulatory Compliance: USA Industrial Safety & Environment

Operating heavy rotating machinery in the United States requires strict adherence to federal and state safety protocols. A failure in a drive shaft is not just a production stoppage; it is a potential projectile hazard.

OSHA 1910.219 Compliance

The Occupational Safety and Health Administration (OSHA) standard 1910.219(c) mandates that all exposed power transmission shafts must be guarded. UK pto-drive-shafts.com supplies fully enclosed safety cages and “dead-man” guard systems compatible with our shafts. Unlike agricultural PTO guards which are plastic, our mill guards are fabricated from 10-gauge steel or aluminum tread plate to withstand the impact of a broken U-joint at 600 RPM.

Extreme Condition Adaptation: The “Rust Belt” Winter

In states like Ohio, Michigan, and Illinois, unheated mill sheds see temperatures drop to -20°F (-29°C). Standard lithium-based greases harden, causing channeling in the bearing cups, leading to starvation and failure. For our US clients in these zones, we specify Low-Temperature Synthetic Sulfonate Complex greases (NLGI 1.5) and utilize localized seal heaters where necessary. Conversely, in the southern steel hubs of Alabama and Texas, ambient heat combined with radiant heat requires Viton (FKM) seals capable of sustaining 200°C continuously.

रेट्रोफिट और इंटरचेंजेबिलिटी गाइड

Many legacy mills in North America operate on equipment originally supplied by European or Japanese OEMs decades ago. Maintenance teams often struggle to source obsolete parts. UK pto-drive-shafts.com specializes in reverse-engineering these components using CMM (Coordinate Measuring Machines) to create drop-in replacements that meet or exceed the original specifications.

We routinely engineer replacements compatible with interfaces originally designed for:

• GWB / Dana* (Series 390, 587, 687)
• Voith* (R Series)
• GKN* (Industrial Line)
• Maina*

Case Study: 120-Inch Plate Mill, Midwest USA

The Problem: A major plate manufacturer was experiencing premature failure of the intermediate shaft between the pinion stand and the reduction gear. The universal joints were failing every 4 months (approx. 2,800 operating hours). The incumbent supplier blamed “operator error” during overload clutches.

हमारा निदान: We deployed torque telemetry gauges directly onto the shaft. Data analysis showed that during the “biting” phase of the slab, the torsional deflection of the long shaft was creating a resonance frequency that matched the gear mesh frequency of the pinion stand. The shaft was essentially shaking itself apart at the molecular level due to harmonic amplification.

समाधान: We did not just replace the shaft. We increased the tube diameter from 350mm to 420mm to increase torsional stiffness (shifting the natural frequency up and away from the operating range) and upgraded the cross kit to a 4-row cylindrical roller design to handle the shock load.

The Result: The new shaft has been in operation for 3 years (25,000+ hours) with zero failures. The customer saved an estimated $450,000 in downtime and replacement costs.

Critical Spares & Maintenance Regimen

A drive shaft is only as reliable as its lubrication schedule. For our US industrial clients, we provide a comprehensive Bill of Materials (BOM) for predictive maintenance.

• क्रॉस और बेयरिंग किट (स्पाइडर किट): The heart of the joint. We recommend stocking 1 set for every 4 shafts in operation.
• Flange Bolts (Grade 12.9): Never reuse flange bolts. Once torqued to yield, they lose their elasticity. We supply Parkerized or Geomet-coated bolts for corrosion resistance.
• Companion Flanges with Hirth Serrations: Essential for positive torque lock.
• Viton Seal Kits: For high-temp environments.

Lubrication Protocol: We advise an automatic central lubrication system for hazardous areas. Manual greasing should follow the “Purge Method”—pump until new grease is visible at all four seal points to eject contaminants.
