From the Desk of the Chief Engineer: The “Saltwater Reality Check”

I recall a project near the Orkney Islands in 2019. A client was using a prototype tidal turbine that employed a standard industrial universal joint, protected only by basic marine grease. They assumed the IP67 rating on paper would be sufficient. However, this proved not to be the case. Within just three months, the hydrostatic pressure at a depth of 40 meters, combined with the constant abrasive action of suspended sand particles, caused the seals to fail completely. The cross-shaft journals were severely damaged by chloride corrosion and were beyond repair.

This failure taught us a valuable lesson, one often overlooked in data sheets: the marine environment doesn’t care about your laboratory test results. Since then, we at UK pto-drive-shafts.com Co.,Ltd (pto-drive-shafts.com Ltd.) have completely redesigned our subsea equipment. We upgraded the standard seals to double-lip mechanical face seals and changed the material of critical exposed components from coated carbon steel to duplex stainless steel 2205. This is more than just manufacturing; it’s engineering designed to ensure the equipment functions reliably in harsh environments.

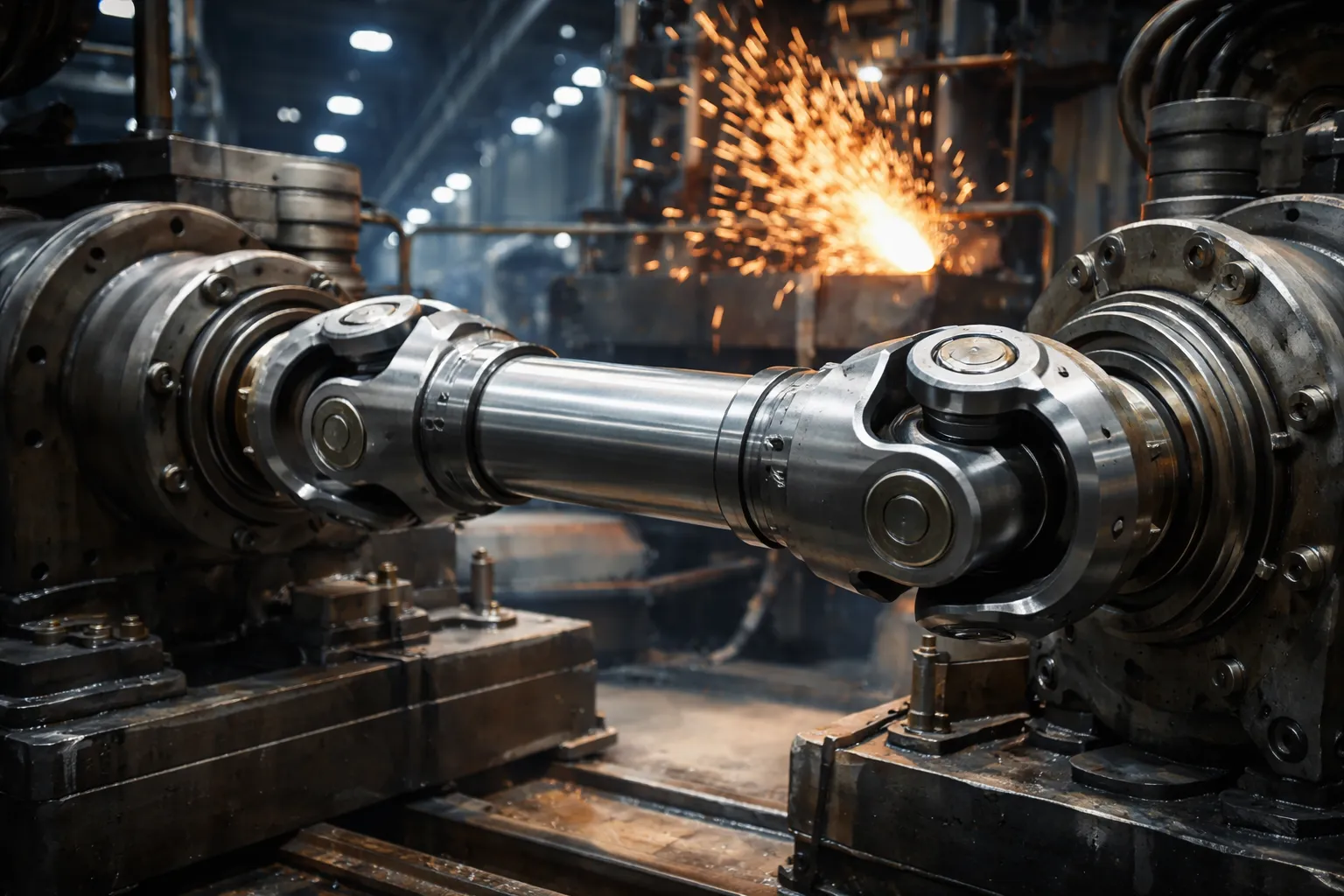

कार्डन शाफ्ट

Ocean Energy: The Survival Challenge of Deep Sea Environments

Ocean energy, including tidal and wave energy, represents the cutting edge of renewable energy generation in the UK and globally. Unlike wind or solar power, water has an energy density 800 times greater than air, meaning that the drive shafts operating in these environments face “extreme” challenges. They must transmit enormous torque in a highly corrosive, biologically active electrolyte solution—seawater.

Core Mechanical Equipment Analysis

Tidal Stream Turbines

Often described as “underwater wind turbines,” these units typically feature a horizontal axis design. The drive shaft here serves as the critical link between the slow-rotating underwater impeller hub and the gearbox or generator housed within the nacelle.

  • Torque Characteristics: While rotational speeds are low (often 10-20 RPM), the torque requirements are immense due to the density of water. Shafts must handle torque loads capable of exceeding 16,000 kNm in heavy-duty applications.
  • Dynamic Loading: The cyclic nature of tides creates predictable but heavy fatigue cycles that must be calculated into the L10 lifespan of the universal joints.

Wave Energy Converters (WEC)

WECs come in various morphologies, including Point Absorbers and Oscillating Water Columns. The drive shaft function here is distinct; it often translates the reciprocating Heave (vertical) and Pitch (tilting) motions of the waves into rotary motion for the Power Take-Off (PTO) system.

  • Motion Profile: Unlike the continuous rotation of turbines, WEC shafts endure violent, bi-directional load changes. The oscillating nature requires zero-backlash designs to prevent shock loading during direction reversals.

Offshore Auxiliary Equipment

Beyond generation, the UK offshore sector relies on robust auxiliary machinery. This includes Anchor Winches, Jack-up Systems for maintenance vessels, and propulsion thrusters for Remotely Operated Vehicles (ROVs). Here, reliability is not just about efficiency; it is a safety-critical requirement.

Extreme Operating Conditions: Corrosion and Impact

The Corrosive Environment

Seawater is a relentless enemy of ferrous metals. Rich in chloride ions, it acts as a strong electrolyte that breaks down passive oxide films on standard steels, leading to rapid pitting and crevice corrosion.

Biofouling Factor: In waters around the UK, such as the Bristol Channel or the North Sea, marine growth (barnacles, algae) attaches to static and slow-moving parts. This biofouling can compromise seal integrity, increase rotational resistance, and accelerate Microbially Induced Corrosion (MIC).

Material Strategy:
Standard steel is obsolete here. We mandate the use of AISI 316L Stainless Steel for housings and Duplex Stainless Steel (e.g., 2205) for stress-bearing yokes and crosses. For extreme longevity, we integrate sacrificial anodes or Impressed Current Cathodic Protection (ICCP) compatibility into the shaft design.

Submersible Sealing & Protection

For a tidal unit operating 50 meters down, a simple lip seal is insufficient against hydrostatic pressure.

  • Mechanical Face Seals: We utilize tungsten-carbide or silicon-carbide mechanical face seals that use the water pressure to maintain the seal face, ensuring zero ingress.
  • Boot Covers: The universal joint cross is encapsulated in a specialized polymer or rubber boot, filled with waterproof, biodegradable marine grease. This creates a physical barrier, totally isolating the articulation points from abrasive sand and salt.

Load Characteristics: The Power of Water

Wave Loading: The stochastic (random) nature of waves results in severe torque pulsations. A shaft might run at 40% load for minutes, only to be hit by a 300% shock load from a rogue wave. Our design process utilizes Rainflow Counting algorithms to predict fatigue life under these non-linear spectrum loading conditions, ensuring the shaft doesn’t fail prematurely due to fatigue accumulation.

🇬🇧 UK Offshore Engineering Context & Compliance

As a Suffolk-based entity, we understand the specific demands of the UK’s marine energy sector. Whether you are testing at the European Marine Energy Centre (EMEC) in Orkney or deploying commercial rigs in the Irish Sea, compliance is non-negotiable.

  • DNV-ST-0378: Our lifting and transmission components for offshore and platform use are designed in accordance with DNV standards for safety and reliability.
  • Supply of Machinery (Safety) Regulations 2008: All our drive assemblies come with full technical files and UKCA marking compliance documentation.
  • Local Support: From our base in Bury St Edmunds, we provide rapid engineering support to major hubs like Aberdeen, Lowestoft, and Pembroke Dock.

Technical Specifications: Marine Drive Shaft Parameters

The following table outlines the technical capabilities of our “Ocean-Series” drive shafts. Note: These are engineered parameters; custom solutions are available for specific project requirements.

पैरामीटर आईडी तकनीकी विनिर्देश Metric / Value नोट्स
टीएस-001 नाममात्र टॉर्क रेटिंग 50 kNm – 16,300 kNm Scalable based on Series
टीएस-002 Peak Shock Load Capacity 3.5x Nominal For Wave Impact
टीएस-003 Max. Rotation Angle 25° (Standard) / 45° (Wide) आरपीएम पर निर्भर
टी-004 मरोड़ कठोरता 1.85 x 10^6 Nm/rad High Rigidity Series
टीएस-005 स्प्लाइन सामग्री 34CrNiMo6 + Rilsan Coating Anti-fretting
टीएस-006 जुए की सामग्री Duplex Stainless Steel 2205 PREN > 35
टीएस-007 Cross Journal Material 18CrNiMo7-6 Carburized HRC 60-62
टीएस-008 सीलिंग रेटिंग IP68 (Submersible) Tested to 100m depth
टीएस-009 परिचालन तापमान सीमा -30°C से +80°C North Sea Compatible
टीएस-010 स्नेहन प्रकार Calcium Sulfonate Complex Water Washout Resistant
टीएस-011 Seal Material Viton (FKM) / NBR UV & Chemical Resistant
टीएस-012 गुणवत्ता का संतुलन जी6.3 / जी2.5 (आईएसओ 1940) For High Speed PTOs
टीएस-013 Length Compensation Up to 400mm Telescopic Slip
टीएस-014 फ्लेंज मानक DIN 15450 / SAE J624 Custom Drilling Available
टीएस-015 Fatigue Life (L10h) > 50,000 घंटे Continuous Duty
टीएस-016 सतह का उपचार HVOF Ceramic / Nickel Plating On Carbon Steel Variants
टीएस-017 फास्टनर ग्रेड A4-80 Stainless Steel High Tensile Marine
टीएस-018 Efficiency > 98.51टीपी5टी At Full Load
टीएस-019 Breakaway Torque Adjustable Clutch Option ओवरलोड सुरक्षा
टीएस-020 रखरखाव अंतराल Semi-Permanent / 5 Years Sealed for Life Options
टीएस-021 स्विंग व्यास 180mm – 1200mm Size Dependent
टीएस-022 Retracted Length Customizable Min 450mm
टीएस-023 अक्षीय बल क्षमता up to 500 kN Thrust handling
टीएस-024 कंपन अवमंदन Optional Composite Tube Carbon Fiber
टीएस-025 Salt Spray Test > 2000 Hours (ASTM B117) No Red Rust
टीएस-026 Biofouling Resistance Cu-Ni Coating Option Anti-Marine Growth
टीएस-027 Connection Type Keyed / Shrink Disc / Hirth Hirth for High Shock
टीएस-028 गारंटी 24 माह Standard Marine
टीएस-029 Documentation 3.1 Material Certs Traceability
TS-030 मूल Engineered in UK/China Global Supply Chain

Key Features of Marine-Grade Cardan Shafts

  • Inverted Slip Design: Unlike agricultural shafts where the spline is exposed, our marine shafts use an inverted slip design where the splined section is housed internally within the tube, completely shielded from seawater and sediment.
  • Sacrificial Anode Integration: We design mounting points on the flange yokes for zinc or aluminum anodes, providing active galvanic protection to the shaft assembly.
  • Nitrotec® Surface Treatment: For components where stainless steel is not feasible due to tensile requirements, we utilize nitrocarburizing treatments which offer corrosion resistance superior to chrome plating while maintaining surface hardness.

Facing a specific marine engineering challenge?

Whether you are designing a new tidal turbine prototype or retrofitting a jack-up vessel, our engineers are ready to assist.

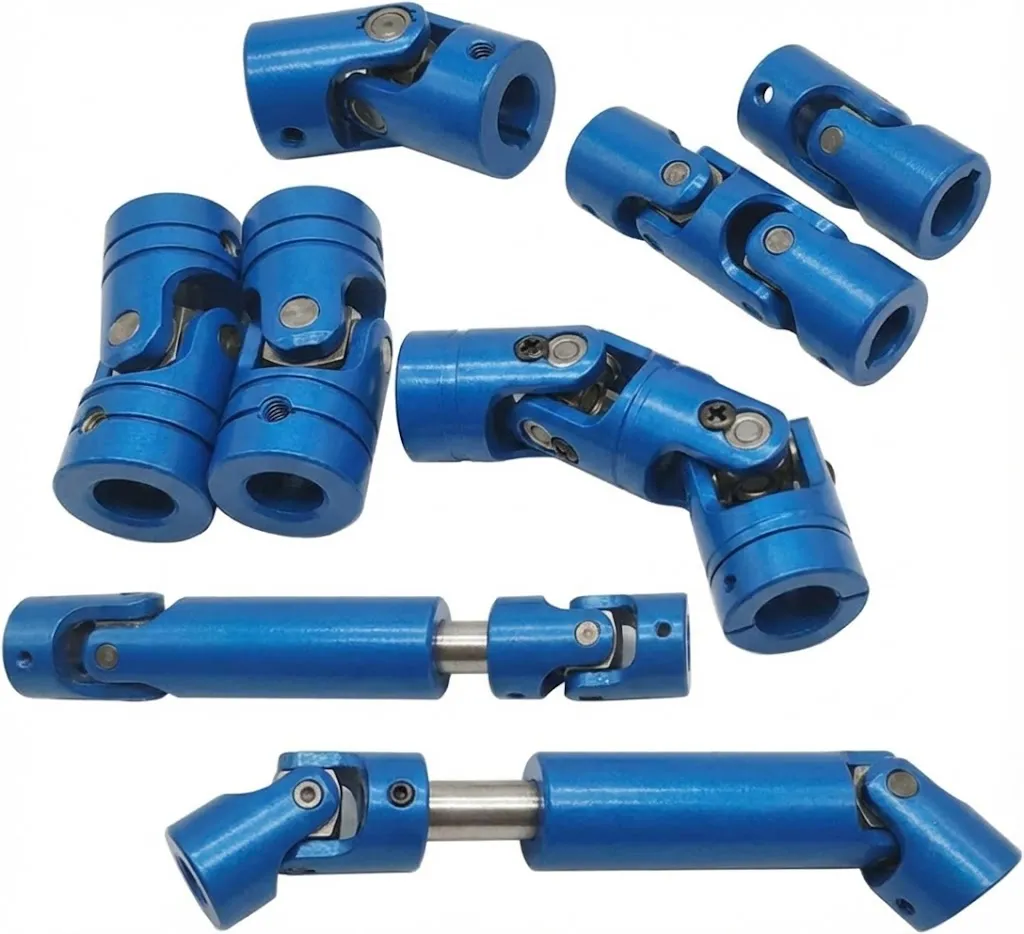

कार्डन शाफ्ट
